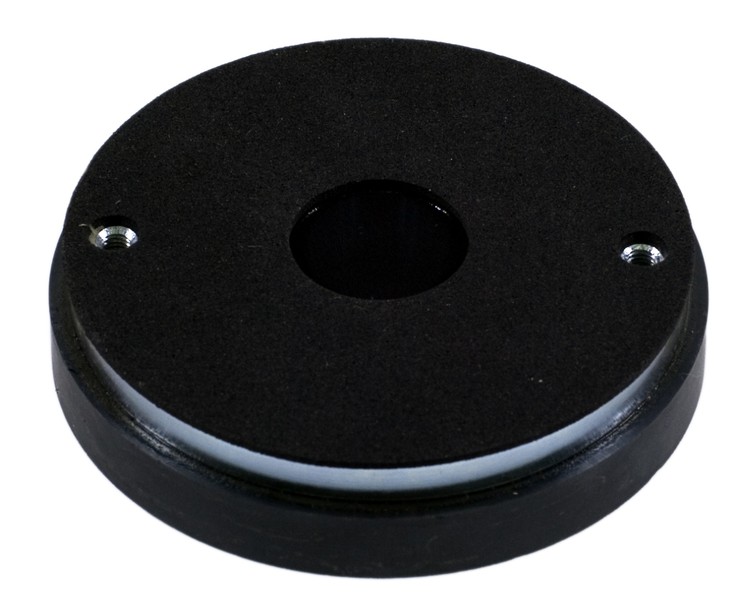

BMS 4538

не е наличен не е наличен
BMS 4538

BMS 4538

4538 Specification

Throat diameter:1" (25.4 mm)
Nominal impendance:8 Ohm
Power capacity (AES):60 W
Peak Power:300 W
Sensitivity
CD Horn 90° x 75°, 1 W / 1 m114 dB
Plane wave tube, 1 mW118 dB
Maximal SPL (cont.)132 dB at 60 W
Frequency Range1200 - 30000 Hz
Recommended crossover1900 Hz
Voice Coil Diameter1.5" (38 mm)
Magnet MaterialFerrite
Flux density (Tesla)1.8
Voice Coil MaterialCopper Clad Aluminum
Voice Coil FormerKapton TM
Diaphragm Material:Polyester

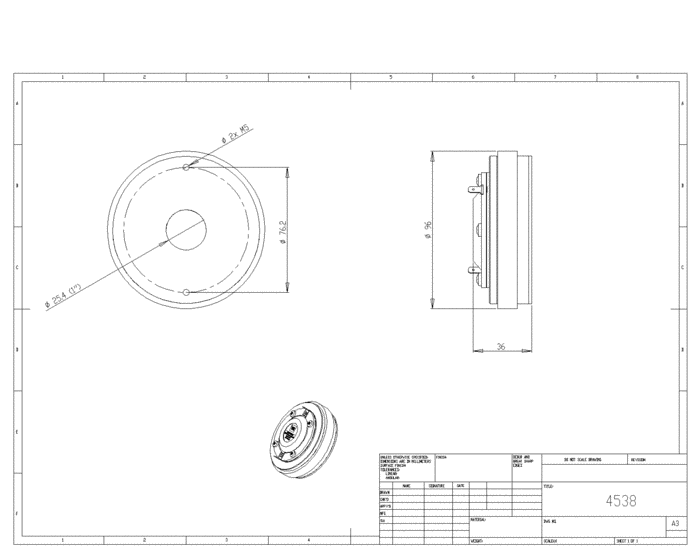

4538 Mounting Information

Overall Diameter:mm96
Depth:mm40
Net Weight:kg0.98
 2 x M5 Holes,180° on 76.2 mm Diameter
отвори галерията на BMS 4538BMS 4538
отвори галерията на BMS 4538BMS 4538


не е наличен не е наличен

върни се

Препоръчани продукти

DIAPHRAGM for P.AUDIO WN-D63
DIAPHRAGM for P.AUDIO WN-D63
РУПОР H100 / 16
РУПОР H100 / 16

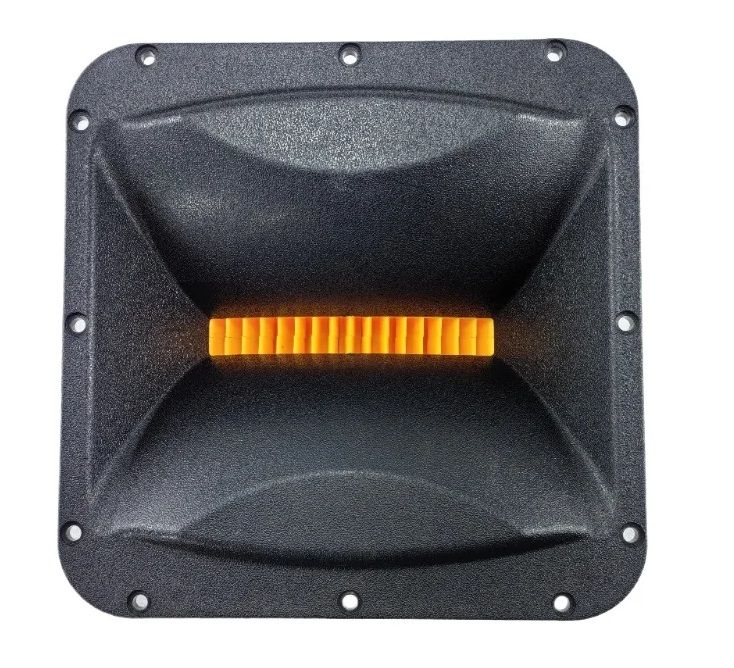

РУПОР LNRY - 2424 1
