4592ND Specification

Throat diameter:2" (50.8 mm)
Nominal impendance:8 or 16 Ohm
Power capacity:
Middle Range (AES):150 W AES above 400 Hz
Peak:1000 W peak above 500 Hz
High Range (AES):80 W
Peak:320 W
Sensitivity 1 W / 1 m:118 dB on 2242 Horn
Frequency Range:300 - 22000 Hz
Recommended Crossover:300 Hz
Middle Frequency Range:300 - 7000 Hz
High Frequency Range:6000 - 22000 Hz
Middle / High Crossover:6300 Hz
Voice Coil High-Range:1.75" (44.4 mm)
Voice Coil Mid-Range:3.5" (90 mm)
Magnet Material:Neodymium
Flux Density Mid-Range (Tesla):1.95
Flux Density High-Range (Tesla):2.0
Efficiency:35 % (300 - 5000 Hz)
Voice Coil Material:Copper Clad Aluminum
 (2 Layers in- and outside of the VC)
Voice Coil Former:Kapton TM
Diaphragm Material:Polyester

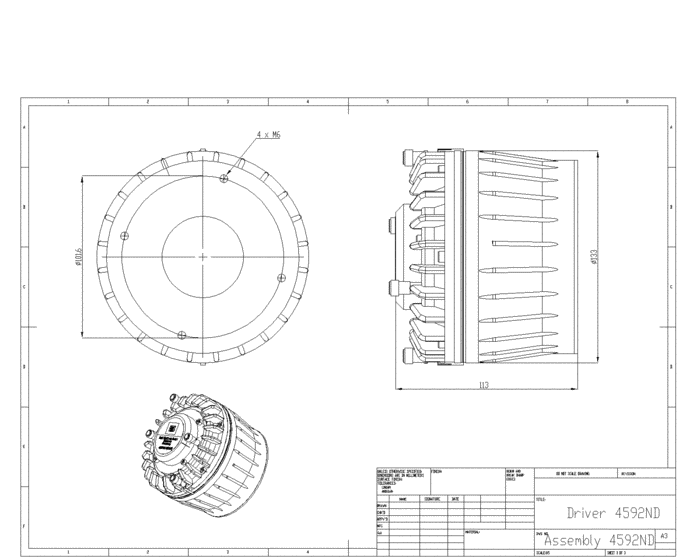

4592ND Mounting

Overall Diameter:mm132 (+/- 3 mm)
Depth:mm113
Net Weight:kg2.3
4 x M6 Holes,90° on 101.6 mm,4" Diameter
