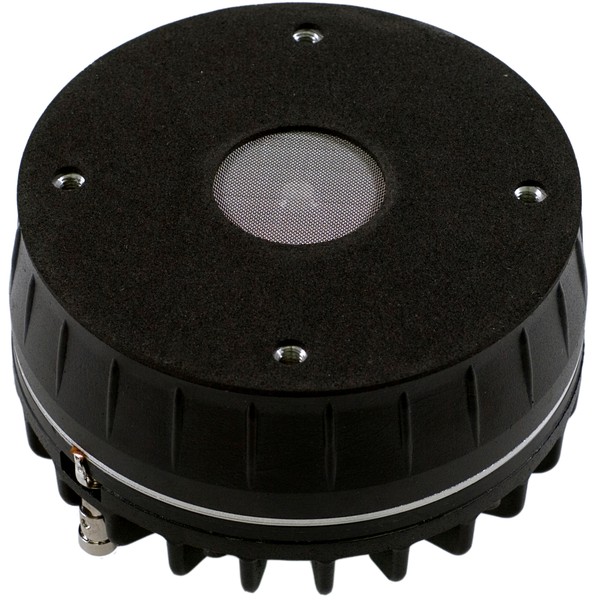

BMS 4595ND

с поръчка

4595ND Specification

Throat diameter:	1.5" (38 mm)
Nominal impendance:	8 or 16 Ohm
Power capacity:
Middle Range (AES):	150 W AES above 400 Hz
Peak:	1000 W peak above 500 Hz
High Range (AES):	80 W
Peak:	320 W
Sensitivity 1 W / 1 m:	118 dB on 40° x 20° Horn
Frequency Range:	300 - 22000 Hz
Recommended Crossover:	300 Hz
Middle Frequency Range:	300 - 7000 Hz
High Frequency Range:	6000 - 22000 Hz
Middle / High Crossover:	6300 Hz
Voice Coil High-Range:	1.75" (44.4 mm)
Voice Coil Mid-Range:	3.5" (90 mm)
Magnet Material:	Neodymium
Flux Density (Tesla)mid:	1.95
Flux Density (Tesla) high:	2.2
Efficiency:	35 % (300 - 5000 Hz)
Voice Coil Material:	Copper Clad Aluminum
	(2 Layers in- and outside of the VC)
Voice Coil Former:	Kapton TM
Diaphragm Material:	Polyester

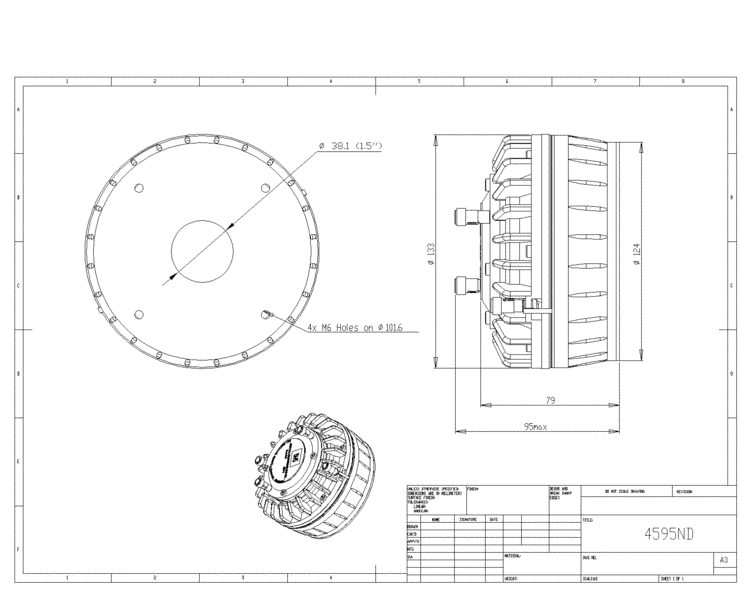

4595ND Mounting Information
