BMS 6S117

BMS 6S117

Specification

Application Low-middle
Nominal Impendance:Ohm8/16
Power handling AES noise:W130
Sensitivity (1 W / 1 m):dB93

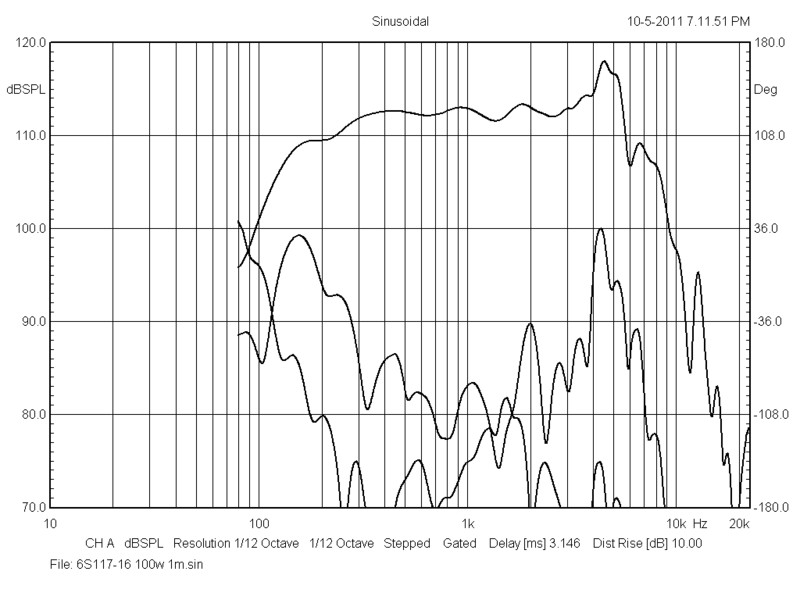

Frequency response:Hz80 - 3500
Voice Coil Diameter:mm38 (1.5")
Voice Coil Material: Cu
Voice Coil Winding Depth:mm15
Magnet Gap Depth:mm5
Basket: Cast Aluminum
Effect. diaphragm diameter Dmm135



Thiele-Small Parameters

Resonance Frequency:FsHz80
DC Resistance:ReOhm11.4
Mechanical Q Factor:Qms 3.3
Electrical Q Factor:Qes 0.49
Total Quality Factor:Qts 0.43
Equivalent Volume:VasL10.4
Moving Mass:Mmskg0.011
Mechanical Complience:Cmsmm / N0.36
BL Factor:BLTesla m11.3
Effective Piston Area:Sdm²0.0143
Max. linear Excursion:Xmaxmm+/- 5
Voice Coil Inductance:Le1kmH0.64
 Le10kmH0.42

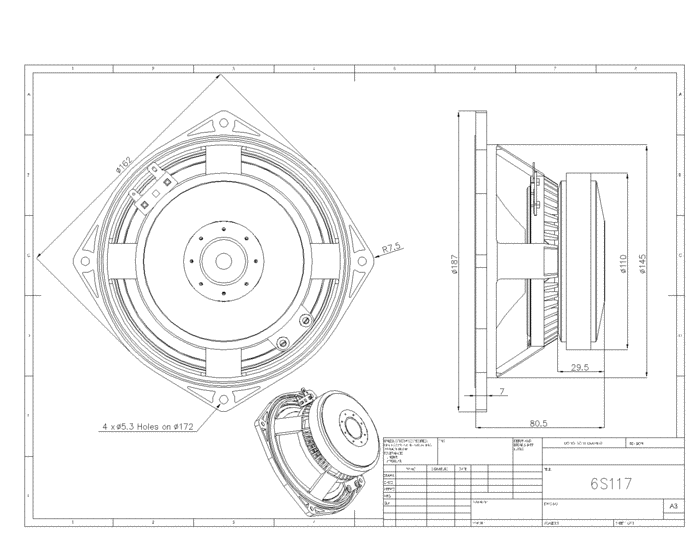

Mounting Information

Overall Diameter:mm162
Mounting Holes Diameter:mm4 x 5.3
Bolt Circle Diameter:mm172
Baffle cut-out Diameter:mm146
Overall depth:mm81.5
Net Weight:kg1.61
