BMS 5S117

не е наличен не е наличен
BMS 5S117

BMS 5S117







Specification

Application Low-middle
Nominal Impendance:Ohm16
Power handling AES noise:W130
Sensitivity (1 W / 1 m):dB91

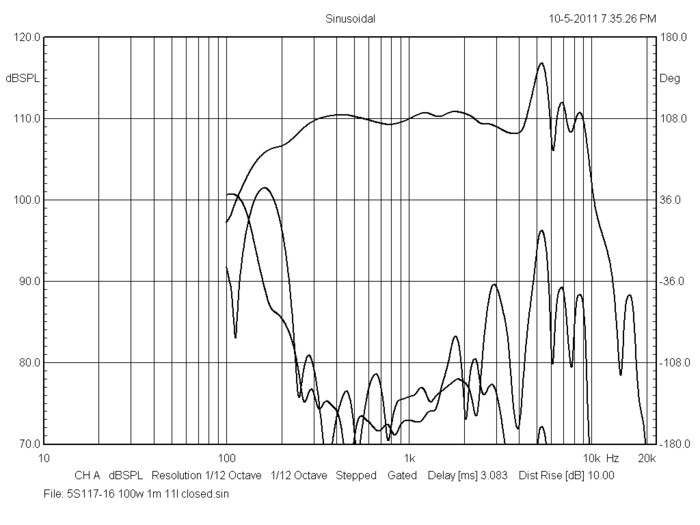

Frequency response:Hz80 - 4000
Voice Coil Diameter:mm38 (1.5")
Voice Coil Material: Cu
Voice Coil Winding Depth:mm15
Magnet Gap Depth:mm5
Basket: Cast Aluminum
Effect. diaphragm diameter Dmm105


Thiele-Small Parameters

Resonance Frequency:FsHz95
DC Resistance:ReOhm11.4
Mechanical Q Factor:Qms 3.3
Electrical Q Factor:Qes 0.49
Total Quality Factor:Qts 0.42
Equivalent Volume:VasL3.25
Moving Mass:Mmskg0.0089
Mechanical Complience:Cmsmm / N0.31
BL Factor:BLTesla m11.3
Effective Piston Area:Sdm²0.0085
Max. linear Excursion:Xmaxmm+/- 5
Voice Coil Inductance:Le1kmH0.58
 Le10kmH0.46

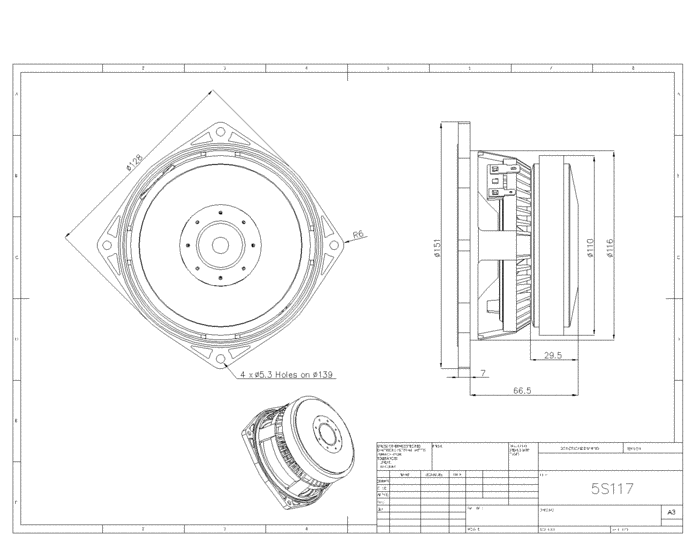

Mounting Information

Overall Diameter:mm128
Mounting Holes Diameter:mm4 x 5.3
Bolt Circle Diameter:mm139
Baffle cut-out Diameter:mm117
Overall depth:mm75
Net Weight:kg1.56
