Precision Sound R1020

Model

R1020A

Nominal diameter

in.

10

Power handing capacity

W

150

Program power

W

300

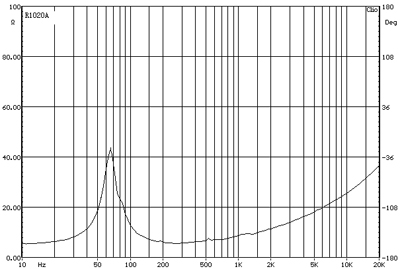

Nominal impedance

Ohm

8

Sensitivity (1W/1m)

dB

93

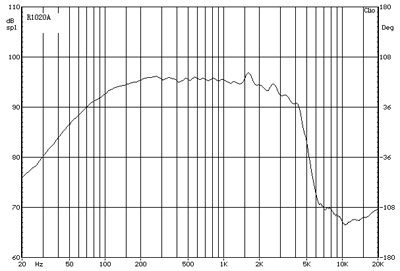

Frequency range

Hz

55-2500

Voice coil diameter

in

2

Fs

Hz

60

Re

Ohm

6

Qms

4.9

Qes

0.50

Qts

0.45

Vas

L

31

Mms

gr

38

Cms

mm/N

0.19

BL

Tm

13

Xmax

mm

4.5

Overall diameter

mm

263

Bolt circle diameter

mm

244

Baffle cut-out diameter

mm

230

Overall depth

mm

123

Net weight

Kg

3.5
