OBERTON 10M250
Приложение: 10M250 съчетава високотемпературна алуминиева 64 мм звукова бобина; алуминиево шаси и феритна магнитна система с 169 мм магнит. Резултатът е мощен среднотонов високоговорител, специално конструиран за приложение като средночестотна част в мощни трилентови тонколони, за вътрешно и външно озвучаване.
| : Power midrange speaker |
|---|
SPECIFICATIONS | THIELE-SMALL PARAMETERS |
Nominal Diameter
Impedance
Minimum Impedance
Power Capacity AES ¹
Power Capacity ²
Program Power ³
Sensitivity
Frequency Range
Voice Coil Diameter
Voice Coil Material
Voice Coil Former
Voice Coil Winding Depth
Magnet Gap Depth
Cone Material
Basket
Magnet
Flux Density | 10"/262 inch/mm
8 Ohm
7.17 Ohm
300 W
250 W
600 W
(500-5000 Hz) 97 dB/W/m
70 - 5000 Hz
64 mm
Aluminium
Kapton™
10 mm
9 mm
Paper
Die cast aluminium
Ferrite
1.40 T | 1. AES standard. Power is calculated on rated minimum impedance.

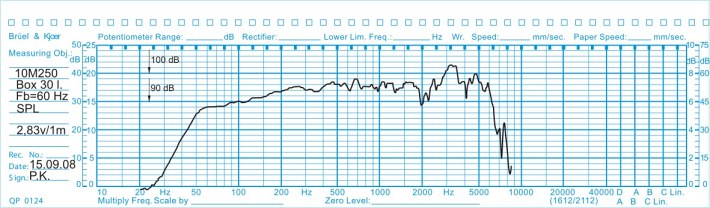

2. Measurement is in 30 L box enclosure tuned 60 Hz using a 50-1000 Hz band limited pink noise test signal applied continuously for 2 hours.
3. Program power is defined as 3db greater than AES Power Capacity. |
| Resonance Frequency
Mechanical Efficiency Factor (Qms)
Electrical Efficiency Factor (Qes)
Total Q (Qts)
Equivalent Air Volume (Vas )
Diaphragm mass ind. airload (Mms)
Voice Coil Resistance Re
Effective Diagram Area (Sd)
Peak Linear Displacement of Diaphragm (Xmax)
Mechanical Compliance of Suspension (Cms)
BL Product (BL)
V.C. Inductance at 1 kHz (Le) | 76.65 Hz
14.62
0.285
0.280
23.05 Litres
26.82 grams
6.09 Ohms
317.3 cm2
± 2.75 mm
0.161 mm/N
16.61 T.m
0.60 mH | | * Linear Mathematical Xmax is calculated as: (Hvc - Hg)/2 + Hg/4 where Hvc is the voice coil depth and Hg is the gap depth. |
|
MOUNTING INFORMATION |
Overall Diameter
Baffle Hole Diameter
Number of Mounting Holes
Bolt Circle Diameter
Overall Depth
Net Weight | 262 mm
228 mm
8 with dia. 7 mm
244 mm
122.5 mm
6.6 kg |
|
