BMS 15S430

в наличност в наличност
BMS 15S430

BMS 15S430

свали pdf (1Mb)

Application Subwoofer
Nominal Impendance:Ohm8
Power handling AES noise:W1200
Sensitivity (1 W / 1 m):dB97

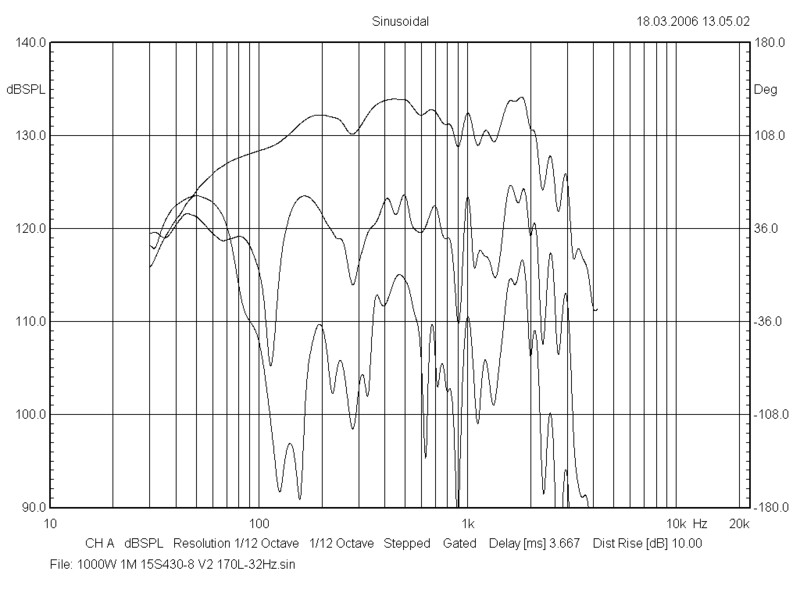

Frequency response:Hz35 - 2500
Voice Coil Diameter:mm101.6 (4")
Voice Coil Material: Cu
Voice Coil Winding Depth:mm26
Magnet Gap Depth:mm10
Basket: Cast Aluminum
Effect. diaphragm diameter Dmm335

Recommended reflex enclosure:
80 L / 44 Hz, BRD = 190 mm / 402 mm long




15S430v² Thiele-Small Parameters

Resonance Frequency:FsHz39.8
DC Resistance:ReOhm4.8
Mechanical Q Factor:Qms 6.4
Electrical Q Factor:Qes 0.29
Total Quality Factor:Qts 0.28
Equivalent Volume:VasL135
Moving Mass:Mmskg0.130
Mechanical Complience:Cmsmm / N0.12
BL Factor:BLTesla m23.5
Effective Piston Area:Sdm²0.0880
Max. linear Excursion:Xmaxmm+/- 8
Voice Coil Inductance:Le1kmH0.73
 Le10kmH0.51

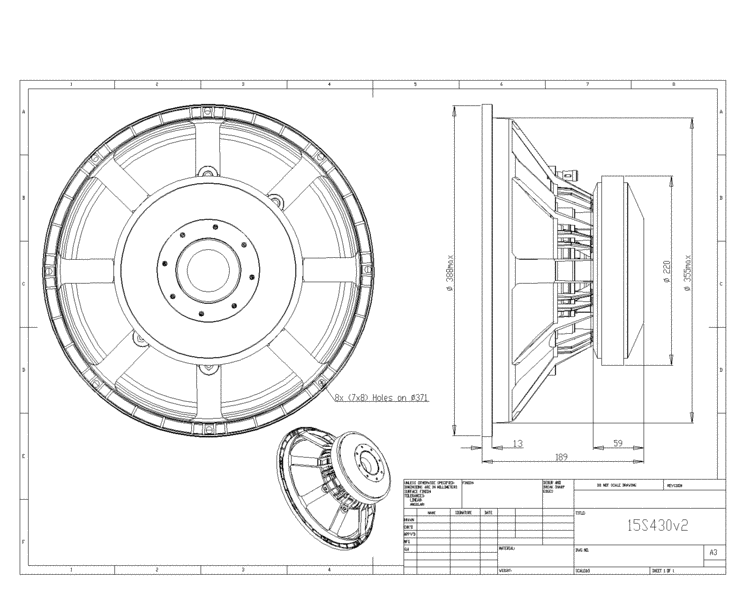

15S430v² Mounting Information

Overall Diameter:mm388
Mounting Holes Diameter:mm8 x (7 x 8)
Bolt Circle Diameter:mm371
Baffle cut-out Diameter:mm358
Overall depth:mm189
Net Weight:kg10.7
