BMS 15N850

с поръчка с поръчка
BMS 15N850

BMS 15N850



Specification

Application Infra-Subwoofer
Nominal Impendance:Ohm8
Power handling AES noise:W1200
Sensitivity (1 W / 1 m):dB95

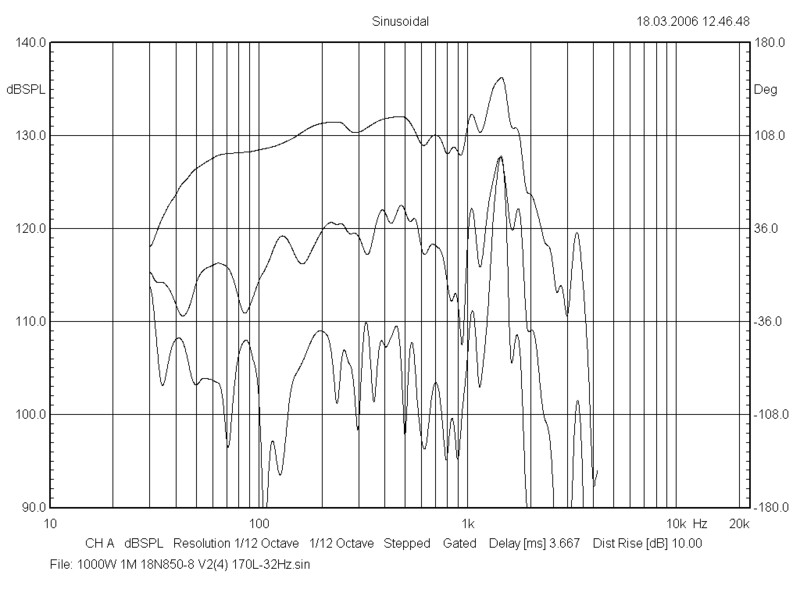

Frequency response:Hz20 - 200
Voice Coil Diameter:mm101.6 (4")
Voice Coil Material: Cu
Voice Coil Winding Depth:mm36
Magnet Gap Depth:mm12
Basket: Cast Aluminum
Effect. diaphragm diameter Dmm393

Recommended reflex enclosure:
140 L / 32 Hz, BRD = 200 mm / 502 mm long



Thiele-Small Parameters

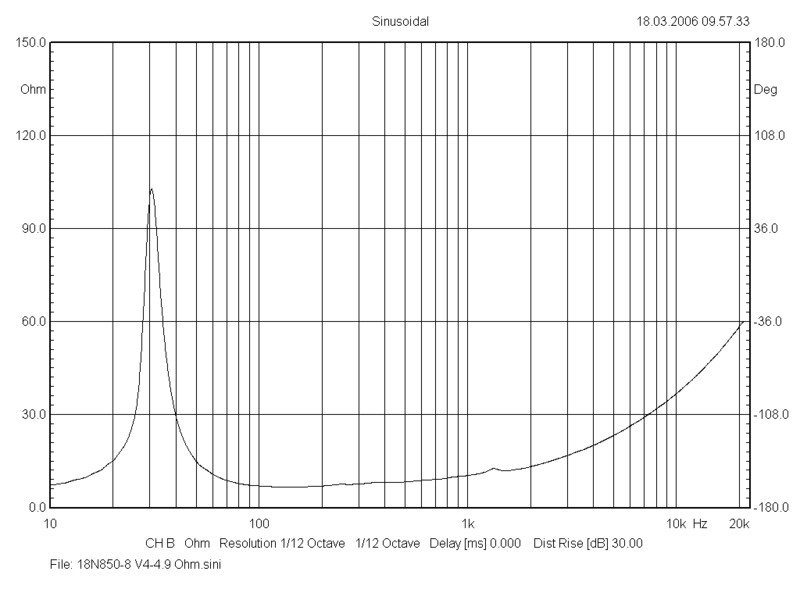

Resonance Frequency:FsHz29.8
DC Resistance:ReOhm5
Mechanical Q Factor:Qms 7
Electrical Q Factor:Qes 0.35
Total Quality Factor:Qts 0.33
Equivalent Volume:VasL243
Moving Mass:Mmskg0.240
Mechanical Complience:Cmsmm / N0.120
BL Factor:BLTesla m25.4
Effective Piston Area:Sdm²0.1213
Max. linear Excursion:Xmaxmm+/- 12
Voice Coil Inductance:Le1kmH0.85
 Le10kmH0.49


Mounting Information

Overall Diameter:mm458
Mounting Holes Diameter:mm8 x 8.5
Bolt Circle Diameter:mm440
Baffle cut-out Diameter:mm414
Overall depth:mm237
Net Weight:kg9.8
