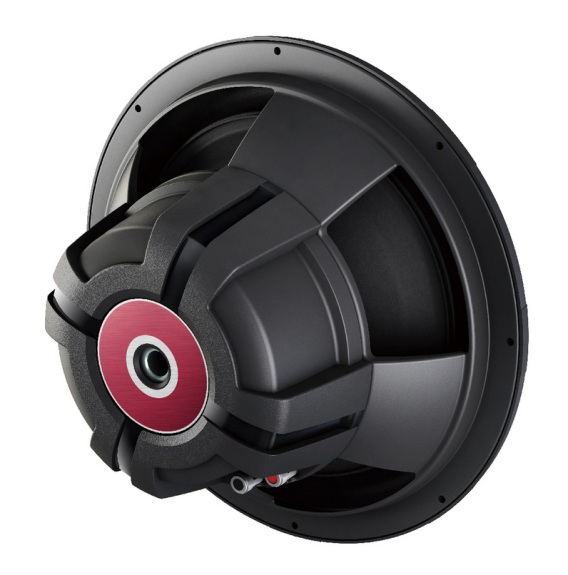

PIONEER TS-W304R
не е наличен
PIONEER TS-W304R
Features
Maximum input power 1.300 W
Nominal input power 300 W
Impedance 4Ω
Frequency response 20 - 220 Hz
Sensitivity (1W/1m) 95 dB
Woofer size 30 cm
Woofer material IMPP cone
Voice Coil bobbin type Extended and Vented pole yoke

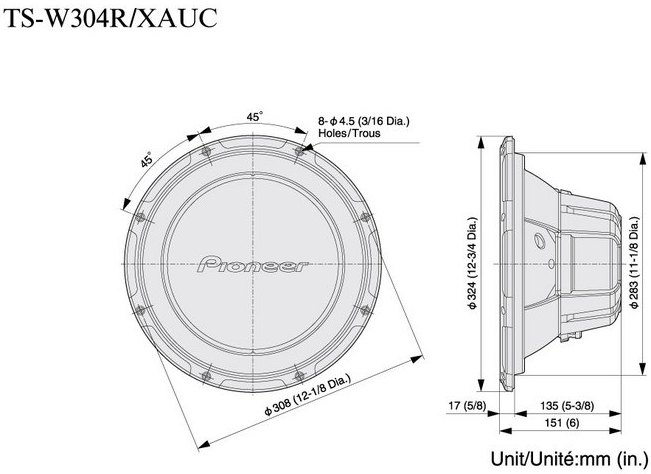

Cut-out Hole 283,0 mm
Mounting Depth 134,5 mm
Thiele/Small Parameters
Nom. Dia.(In) 12
Qts 0,70
Qms 13,30
Qes 0,740
Fs [Hz] 28,6
Vas [l] 77,88
Vas [ft3] 2,75
Vd [l] 0,245
Vd [ft3] 8,64E-03
Sd [m2] 5,20E-02
Sd [ft2] 0,560
Revc [Ω] SINGLE 3.0
Levc [mH] (2000Hz) 2,390
Xmax [mm] 4,7
Xmax [in] 0,19
Zmax [Ω] 40,9
BI [Tm] 10,39
Rms[Ns/m] 2,010
Mms [g] 149,50
Cms [m/N] 2,100E-04
Mg.Wt.[g] 940
Flux Density [Gauss] 6210
Hag [mm] 6
Hag [In] 0,236
Hvc [mm] 15,5
Hvc [In] 0,610
VC.Diameter [mm] 40
Eff [%] 0,21
S.P.L. [dB] 95,0
R.M.S.Power [W] 300
M.M.P. [W] 1300
Sp. Displacement [l] 1,66
Sp. Displacement [ft3] 0,059
Recom. Enclosure [l] 35,4
Recom. Enclosure [ft3] 1,25
F0 (in Cabinet) 51,2
Q0 (in Cabinet) 1,252
